Fernbedienung 4-Zones 2.4G RF GL-RC-007

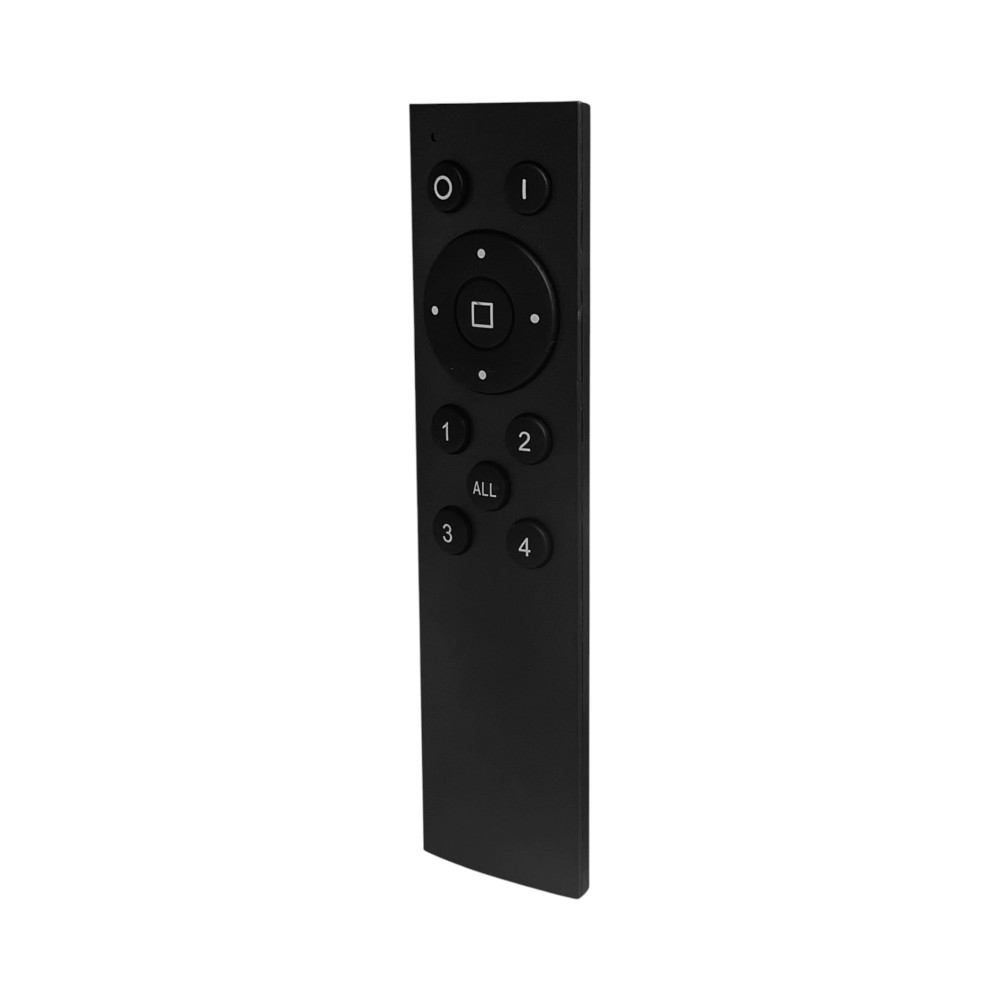

The GL-RC-007 is a compact and elegant 2.4GHz RF remote control for managing RGB+CCT LED lighting systems. It has been specifically designed for the simple and wireless control of compatible controllers using the 2.4GHz radio frequency protocol. The remote control offers four independently controllable zones, allowing multiple lighting areas to be managed separately. Thanks to its ergonomic design, it fits comfortably in the hand and allows for intuitive operation. Colors, brightness, and color temperature can be precisely adjusted to create the desired lighting mood at any time. The GL-RC-007 is ideal for use in residential areas, offices, or showrooms. It facilitates direct connection with compatible Gledopto RGB+CCT RF controllers – without additional bridges or apps. Communication is reliably performed via the GFSK-modulated 2.4GHz signal with a range of up to 30 meters in open field. The device operates with two AAA batteries and impresses with low standby consumption. The black housing color and modern layout make it an attractive control solution.

Recommended Articles:

• 2x AAA batteries (Not included)
• LED Controller Pro 5-in-1 ZigBee 3.0 12-24V DC GL-C-201P
• USB 5V LED Controller mini ZigBee 3.0 GL-MC-001
• USB 5V LED Controller mini ZigBee 3.0 with 2m LED Strip Starter Kit MC-001PK

Features:

• 2.4GHz radio technology ensures reliable wireless control.
• Four zones allow for independent control of lighting groups.
• RGB+CCT control enables individual adjustment of colors and white light.
• Range of up to 30 meters easily covers larger rooms.
• Low standby power consumption of only 15 μA extends battery life.
• The device uses GFSK modulation for a stable signal.
• The remote control is compatible with Gledopto RGB+CCT RF controllers.
• Powered by two AAA batteries, the remote control operates independently of the power grid.

Application Examples:

• Control of multi-zone LED lighting in the living room
• Light management in commercial spaces or retail areas
• Ambient lighting in smart home scenarios
• Simple control of ceiling, wall, and strip lighting
• Retrofitting existing LED installations without renovation

Documentation:

• User Manual

Technical Data:

• Manufacturer: Gledopto
• Manufacturer SKU: GL-RC-007
• Protocol: 2.4GHz RF
• Modulation: GFSK
• Zones: 4
• Range: up to 30 m (open field)

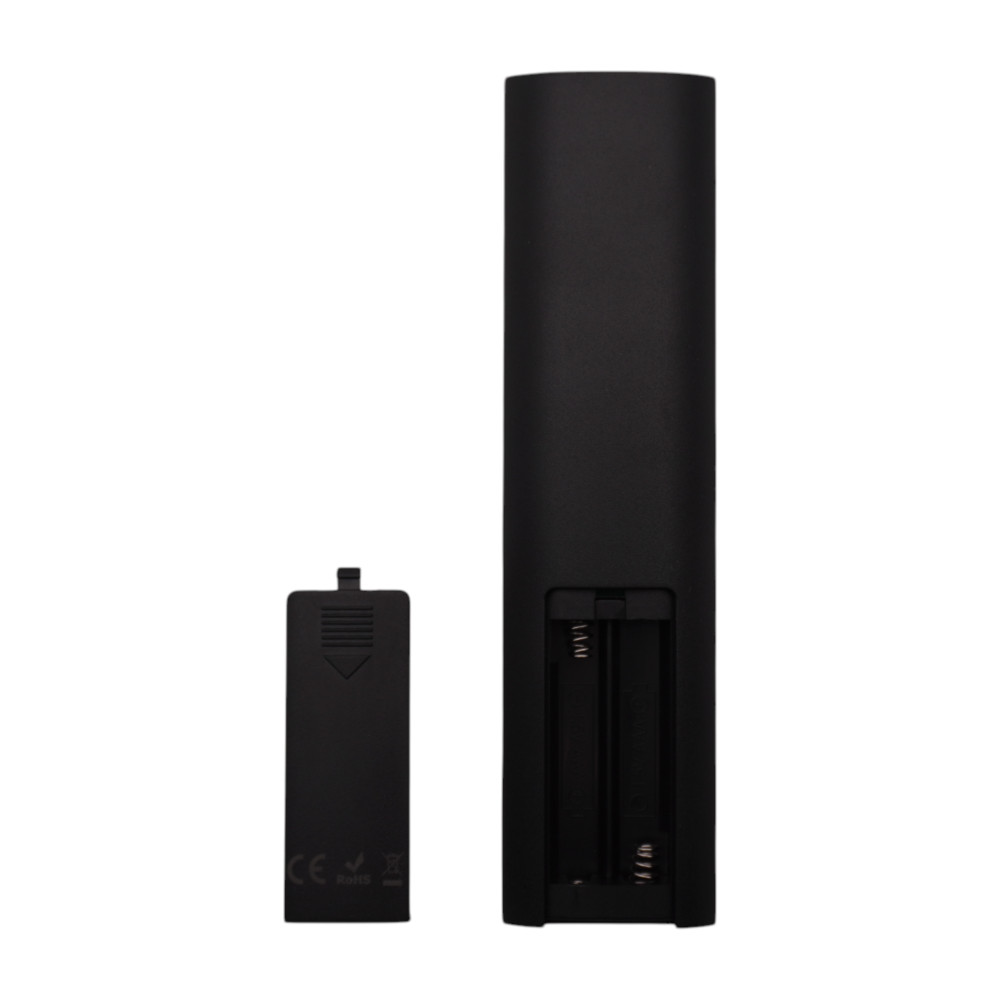

• Power Supply: 2× AAA batteries (not included)
• Standby Consumption: 15 µA
• Material: PC
• Color: Black
• Dimensions: 151 × 38 × 16 mm
• Weight: 45 g

Package Contents

• 1x 4-Zone 2.4G RF Remote Control GL-RC-007
