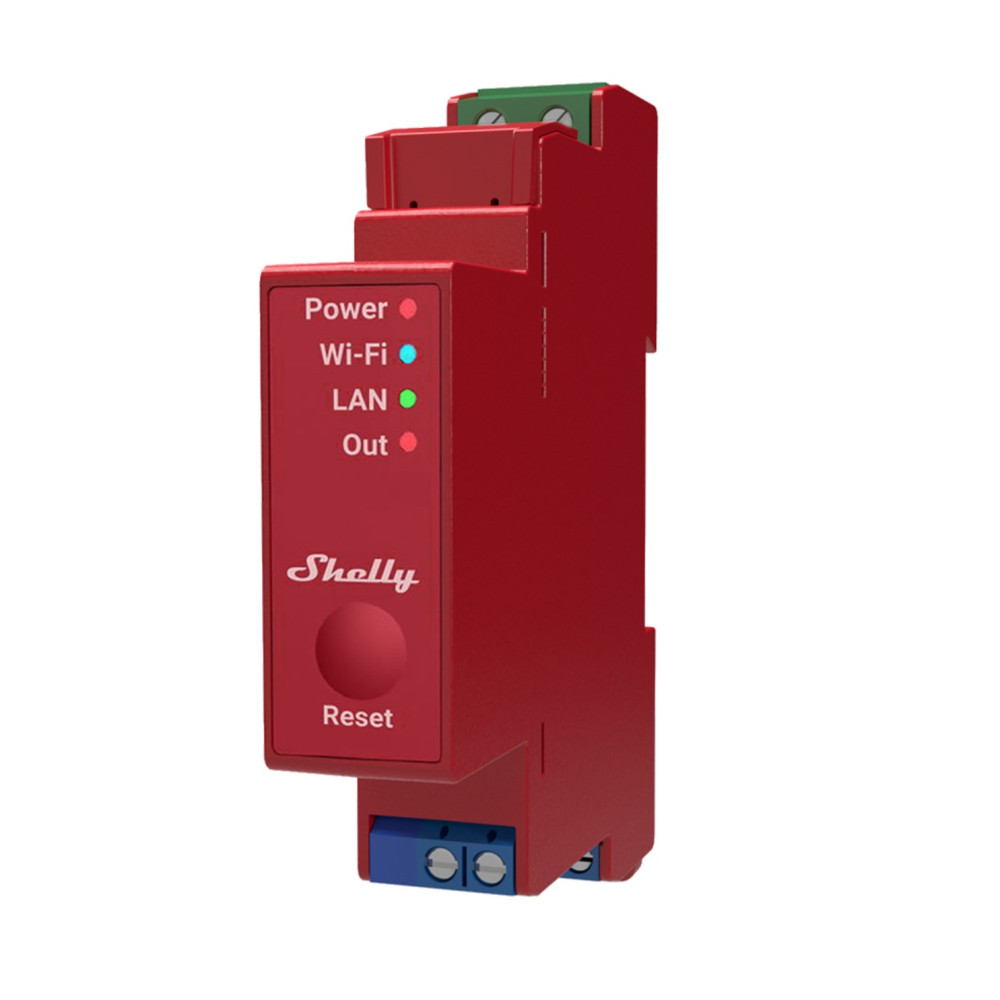

Shelly Pro 1PM WiFi Switch with Energy Measurement

The Shelly Pro 1PM is a 1-channel WiFi relay with precise power metering for mounting on DIN rails, e.g., in the fuse box. Thanks to the Bluetooth connection, Shelly Pro devices can easily be configured with the Shelly App and integrated into the WiFi. If no WiFi is available, you can also connect the Shelly directly to your switch via a LAN network cable.

Warning: Working on the 230V network is dangerous and can lead to fatal accidents. Therefore, always disconnect the device from the mains and turn off the fuses when connecting or with the housing open. We accept no liability for improper use of the device. If you do not feel confident with the installation, it is better to have the device installed by an electrician.

Features of Shelly Pro 1PM WiFi Switch:

• Easy to mount on DIN rail.
• Shelly Pro Line supports mjS scripts.
• 1x 16A switching output with precise power metering.
• Equipped with temperature, overload, and overvoltage protection.
• Features WiFi, LAN, and Bluetooth interface.
• No HUB required, connect Shelly directly to your home WiFi or LAN.
• Compatible with Android, iOS, Amazon Alexa, Home Assistant, MQTT, openHAB, and Google Assistant.
• With the Shelly Cloud App, you can turn devices on and off via your smartphone or tablet.
• Shelly has an integrated WEB interface, where you can turn Shelly on and off, make settings, or perform an OTA update.
• The Shelly has a weekly timer integrated, allowing you to schedule turning on and off based on time and day.
• Shelly knows your location and thus allows control over your lights based on sunrise and sunset throughout the year.

Documentation:

• Shelly Knowledge Base
• Shelly Forum German

Technical Details:

• Manufacturer: Allterco
• Type: Shelly Pro 1PM
• Number of channels: 1
• Load per channel: 16A
• Operating voltage: 110-240V 50/60Hz AC
• Power consumption: <3W
• Range (Depending on environment): 50m Outdoor / 30m Indoor
• WiFi Protocol: WiFi 802.11 b/g/n
• WiFi Radio frequency: 2412 to 2484MHz
• LAN interface: Yes
• Bluetooth: Yes
• Power metering: Yes
• Temperature protection: Yes
• Overload protection: Yes
• Dimensions: 89.5 x 18.5 x 68.5mm
• Weight: 88g

Scope of delivery:

• 1x Shelly Pro 1PM WiFi Switch
